G-106
G-106

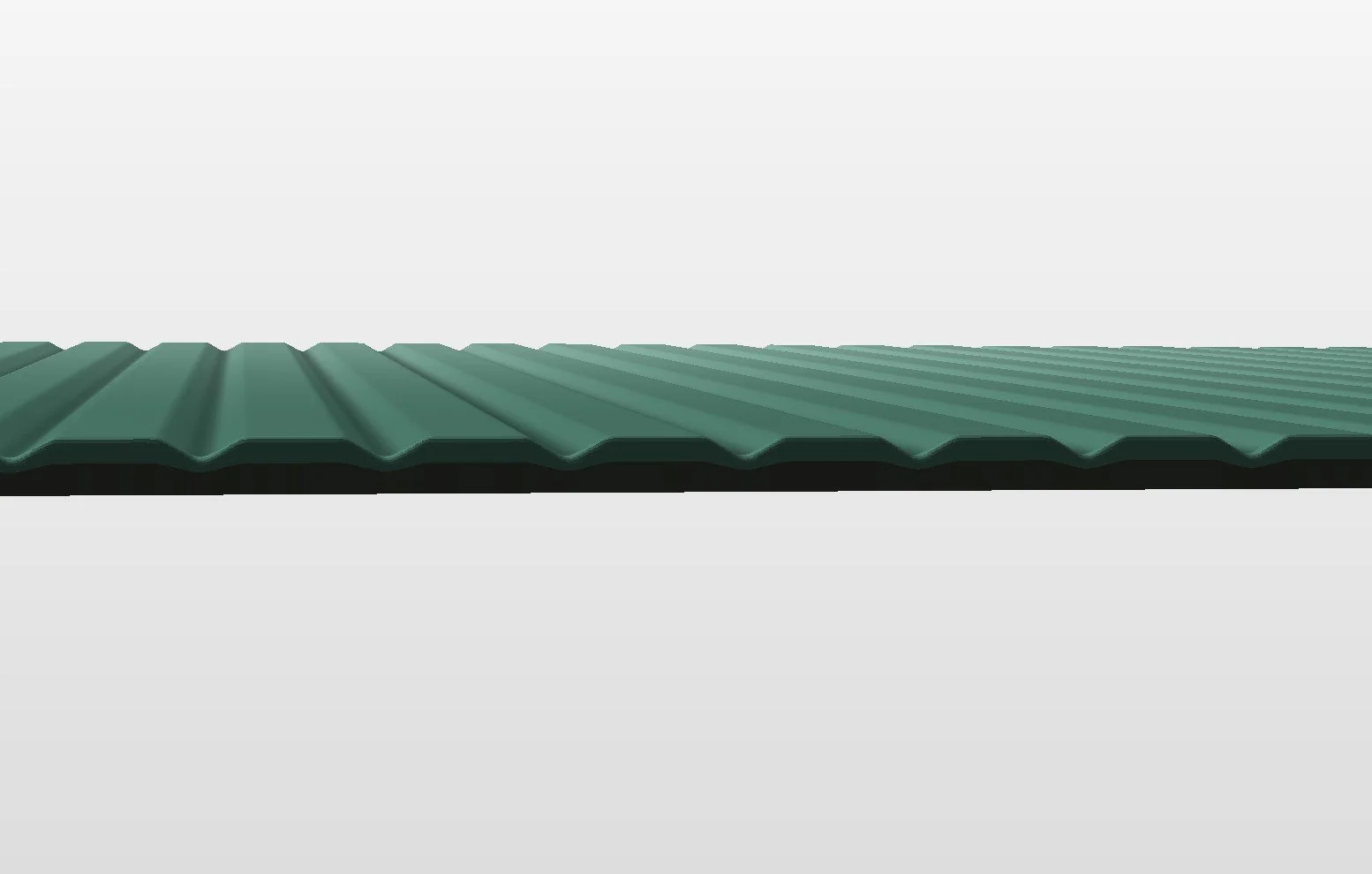

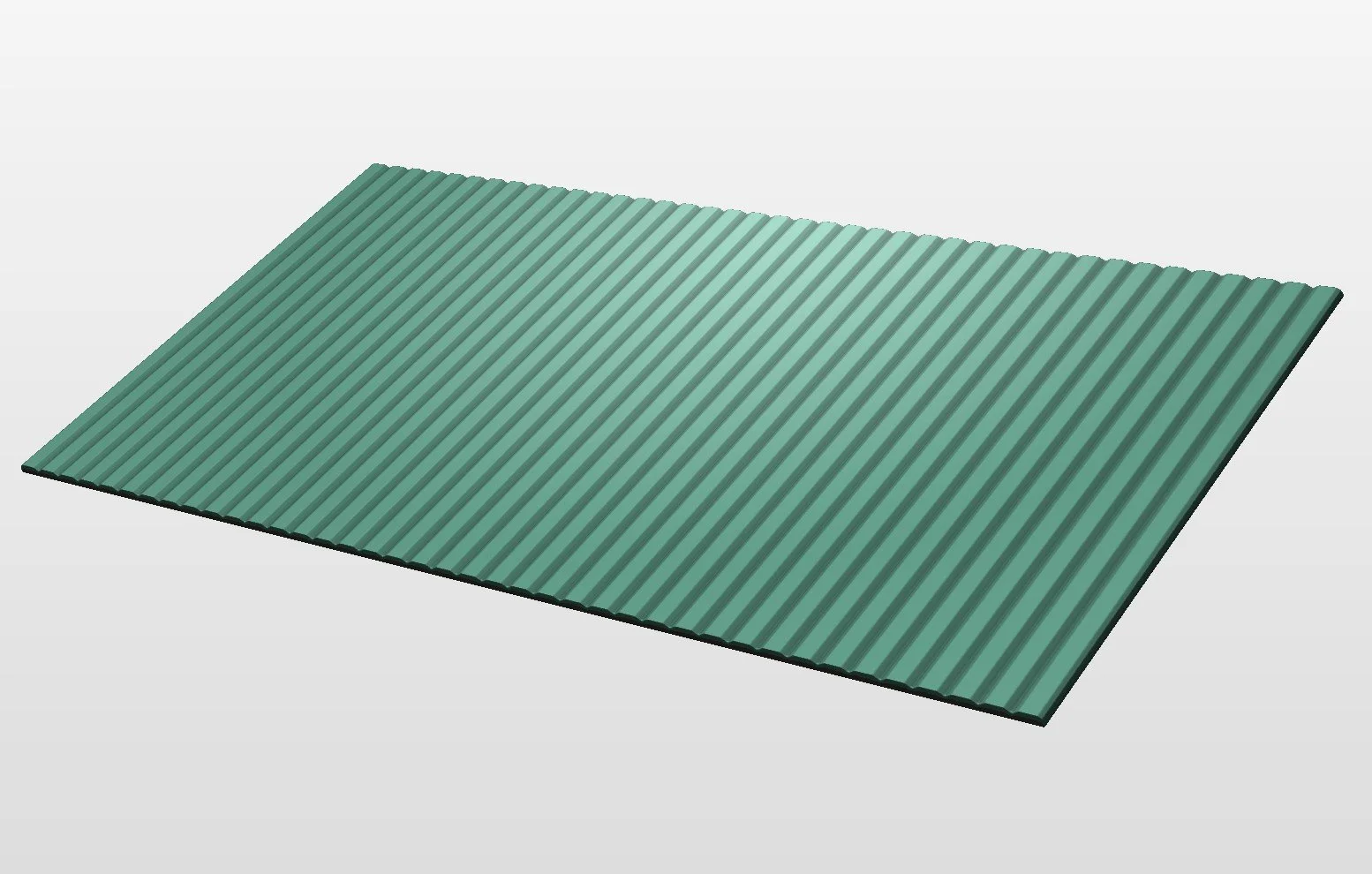

Fluted groove texture STL panel for CNC sign backgrounds, modern wall features, and furniture accents. G-106 is a clean linear rib pattern that reads like refined corrugation, giving builds a sleek industrial look that finishes fast and works well behind logos and dimensional lettering.
Specs:
• Model: G-106
• Pattern / Style: clean linear rib pattern
• Native Panel Size: 96 x 48 in
• Max Z Relief: 0.75 in
• Units: Inches (Some Import in mm)
• Orientation: Rotatable tile
• Format: STL only
• File Size: 96MB
Workflow + Finish Notes:
• Supplied as an STL optimized for smooth 3D finishing passes
• Depth range about 0.27 in (within the relief)
• Recommended materials: HDU, wood, foam
• Suggested tooling: 1/16 in to 1/4 in bit
• Finish pass: 3D raster around 8 to 12% stepover
• Toolpath tip: climb cut for a cleaner edge and surface
• Tested in Aspire, EnRoute, and Fusion 360
• Great for sign backgrounds, wall panels, furniture accents, and art installs
What You Get:
• 1 STL file (96 x 48 x 0.75 in), rotatable seamless tile
• Digital download (delivered via Dropbox link)
• License: use on physical goods for you or your clients; no file resale or sharing
• Support: info@cravedesignworks.com
All files are STL Files .stl (Standard Triangle Language) compatible with Aspire, En Route, ArtCam, Fusion 360 and all other dimensional design software. Basic level support is included with purchase - custom designs, change requests and adjustments are available upon request.
Texture files provided are sized for 2440 x 1220 mm. (8' x 4'), and can be scaled down for smaller output within your software platform. Thicknesses range between 3.5 - 20 mm. (1/8" and 3/4") based on the particulars of the design, and can also be adjusted within your software. For custom size or tailored changes to any texture files, please contact us.
