G-113
G-113

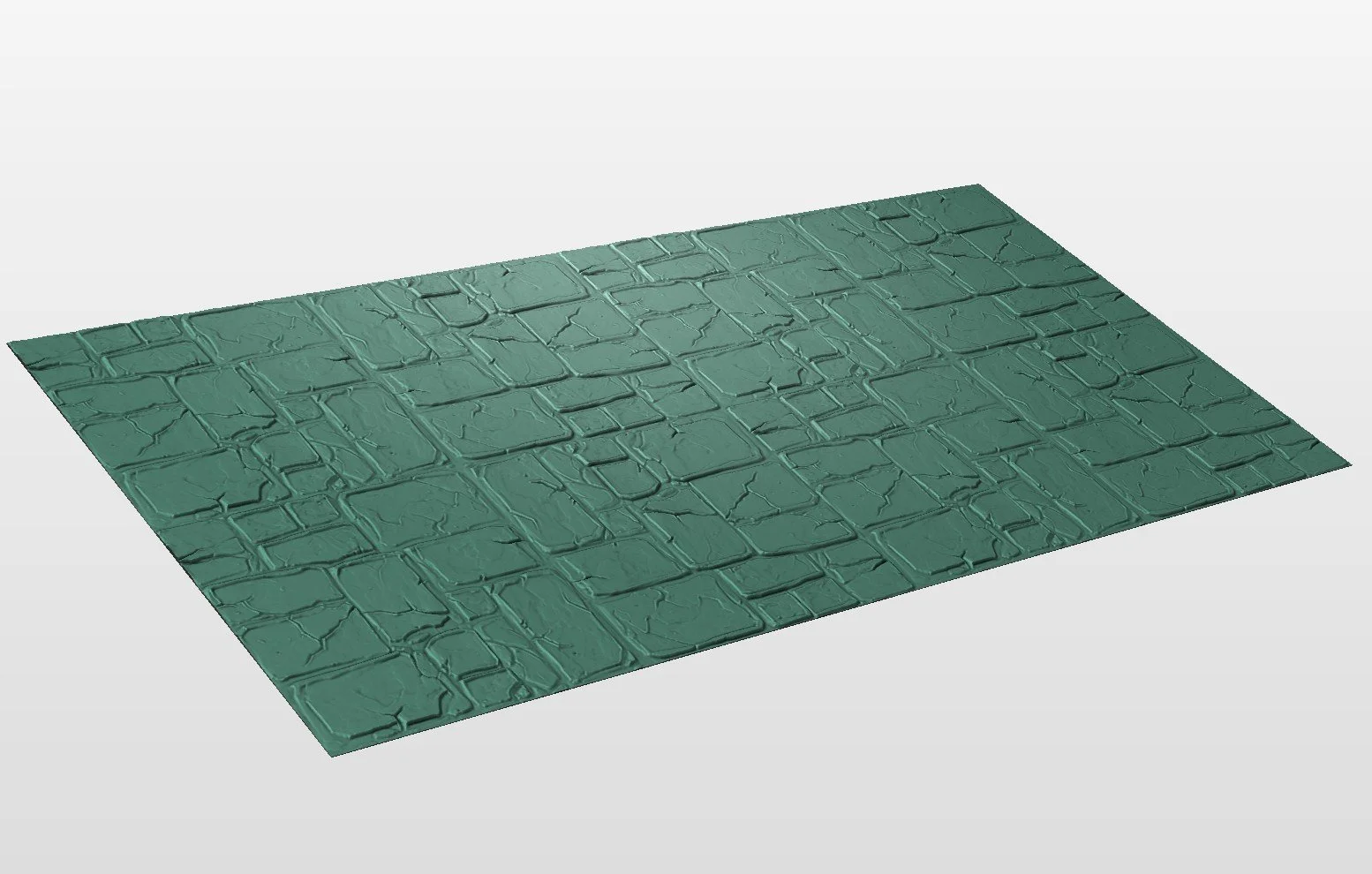

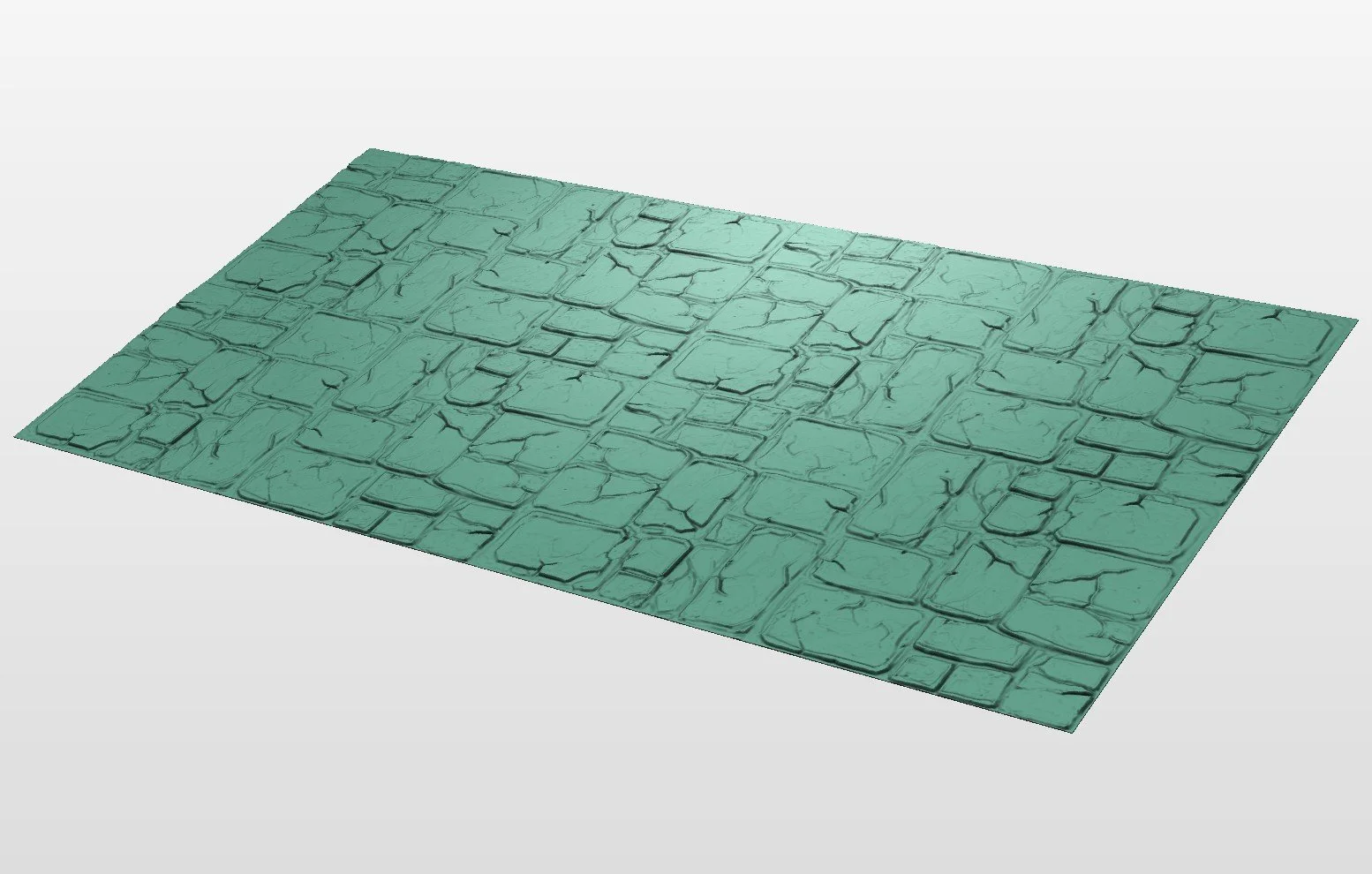

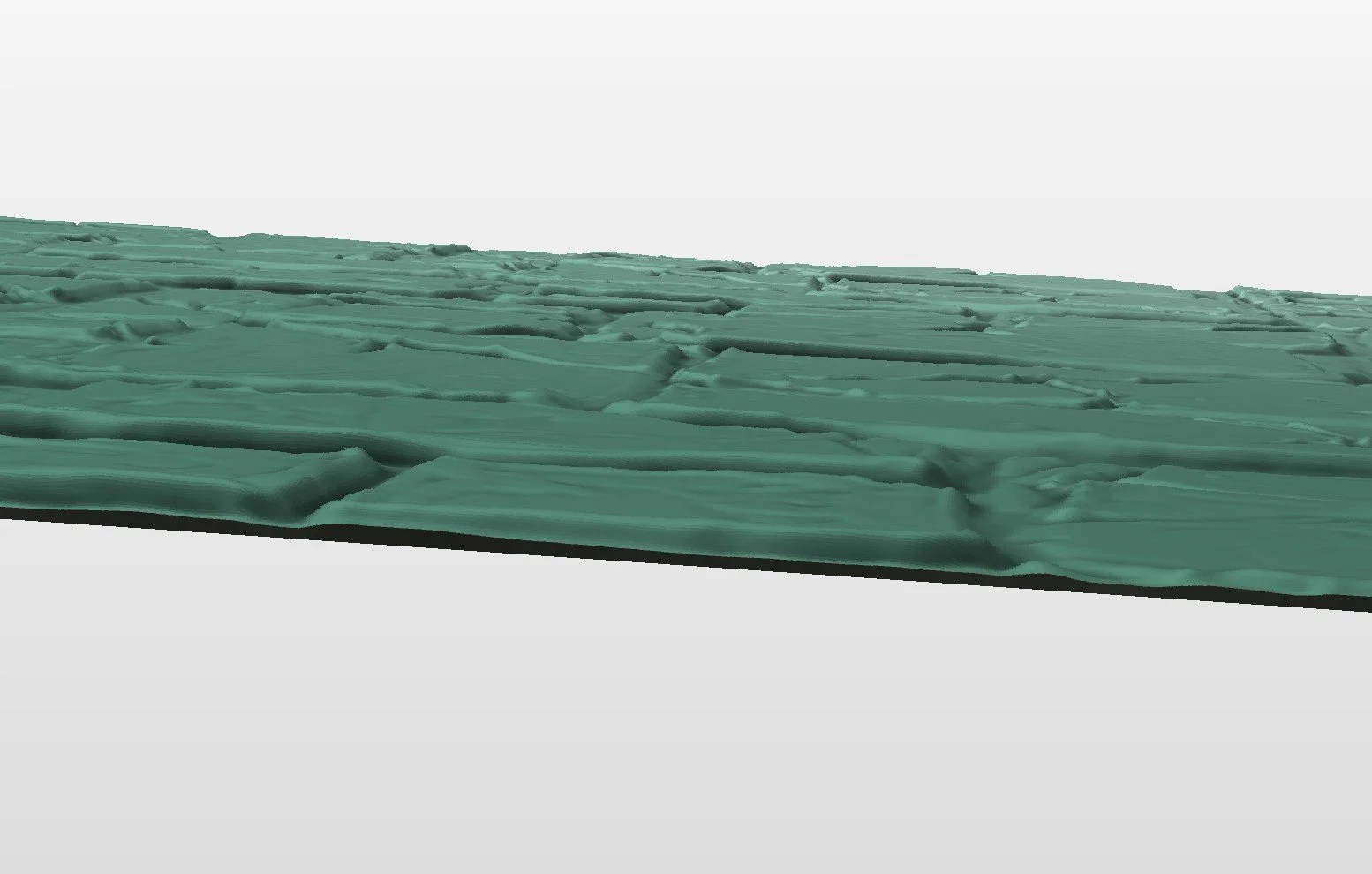

Mykonos stone masonry texture STL panel for CNC sign backgrounds, wall features, and furniture accents. G-113 delivers a lifelike stone or concrete surface that adds depth and realism to dimensional builds. Designed at a standard 48 x 96 master for 4x8 sheets, it scales cleanly for smaller panels or larger installs.
Specs:
• Model: G-113
• Pattern / Style: lifelike stone or concrete surface
• Native Panel Size: 96 x 48 in
• Max Z Relief: 0.315 in
• Units: Inches (Some Import in mm)
• Orientation: Rotatable tile
• Format: STL only
• File Size: 96MB
Workflow + Finish Notes:
• Supplied as an STL optimized for smooth 3D finishing passes
• Depth range about 0.265 in (within the relief)
• Recommended materials: HDU, wood, foam
• Suggested tooling: 1/16 in to 1/4 in bit
• Finish pass: 3D raster around 8 to 12% stepover
• Toolpath tip: climb cut for a cleaner edge and surface
• Tested in Aspire, EnRoute, and Fusion 360
• Great for sign backgrounds, wall panels, furniture accents, and art installs
What You Get:
• 1 STL file (96 x 48 x 0.315 in), rotatable seamless tile
• Digital download (delivered via Dropbox link)
• License: use on physical goods for you or your clients; no file resale or sharing
• Support: info@cravedesignworks.com
All files are STL Files .stl (Standard Triangle Language) compatible with Aspire, En Route, ArtCam, Fusion 360 and all other dimensional design software. Basic level support is included with purchase - custom designs, change requests and adjustments are available upon request.
Texture files provided are sized for 2440 x 1220 mm. (8' x 4'), and can be scaled down for smaller output within your software platform. Thicknesses range between 3.5 - 20 mm. (1/8" and 3/4") based on the particulars of the design, and can also be adjusted within your software. For custom size or tailored changes to any texture files, please contact us.
